AWS Architecture

Summary

This content provides details on encryption, shows the overall architecture of a Kubefirst Pro deployment, and provides an exhaustive list of Terraform objects created as part of a Kubefirst installation.

Default Encryption At Rest

When using Kubefirst Pro to enable encryption at rest throughout your AWS region for EC2 you will need to complete the following steps:

1. Open the Amazon EC2 console and select your Region.

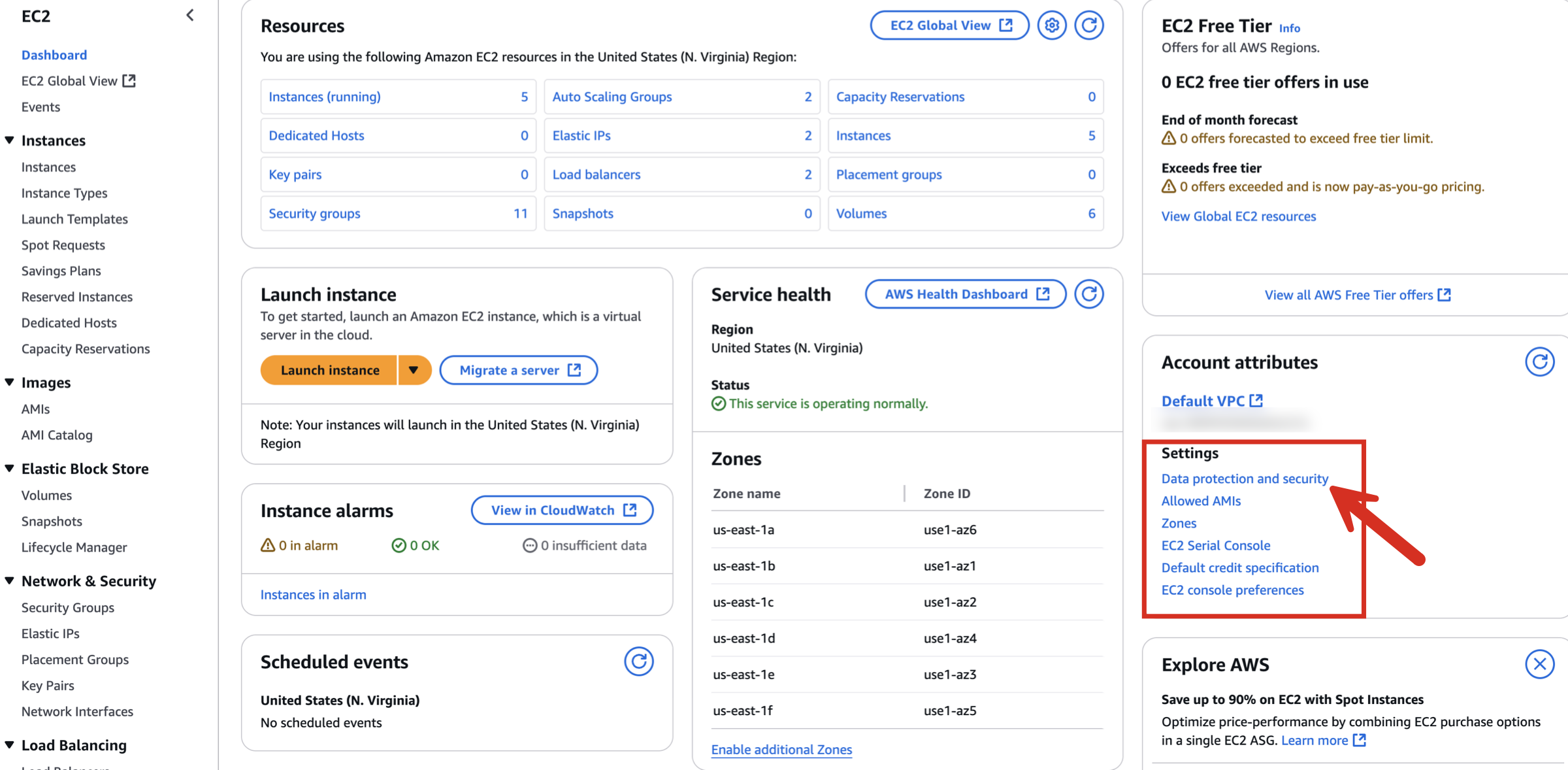

2. Select the EC2 Dashboard. Under Account Attributes select Data protection and security.



3. In the EBS encryption section, choose Manage. Select Enable. You keep the AWS managed key with the alias aws/ebs created on your behalf as the default encryption key, or choose a symmetric customer managed encryption key.

4. Choose Update EBS encryption.

Refer to additional details in the AWS documentation.

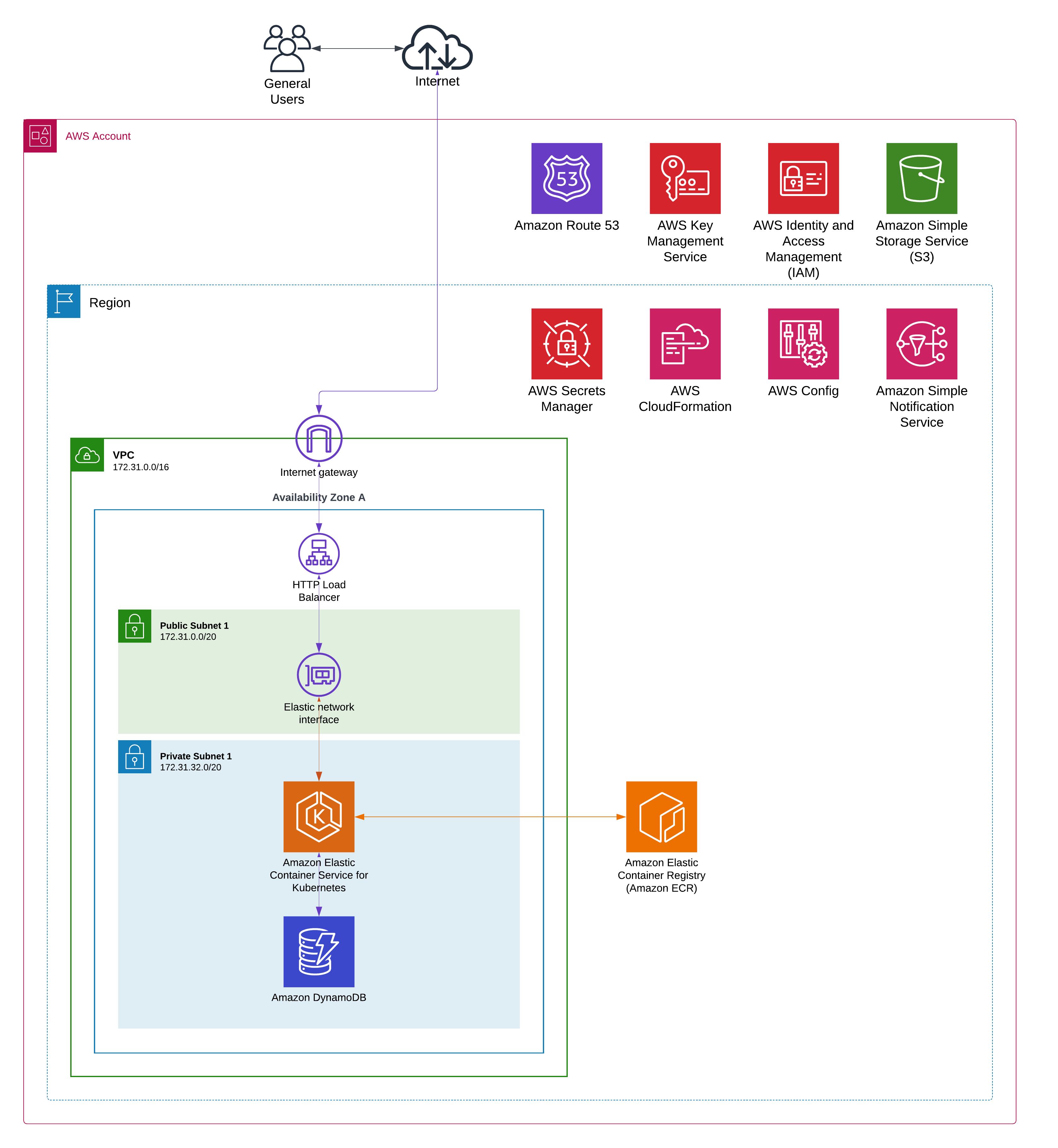

Diagram

Terraform Objects

terraform state list
aws_iam_role_policy_attachment.vcluster_external_dns
module.dynamodb.aws_appautoscaling_policy.dynamodb-table-read-policy
module.dynamodb.aws_appautoscaling_policy.dynamodb_table_write_policy
module.dynamodb.aws_appautoscaling_target.dynamodb-table-read-target
module.dynamodb.aws_appautoscaling_target.dynamodb-table-write-target
module.dynamodb.aws_dynamodb_table.vault_dynamodb_table
module.eks.data.aws_availability_zones.available
module.eks.data.aws_caller_identity.current
module.eks.data.aws_iam_policy_document.crossplane_custom_trust_policy
module.eks.aws_iam_policy.aws_ebs_csi_driver
module.eks.aws_iam_policy.cert_manager
module.eks.aws_iam_policy.cluster_autoscaler
module.eks.aws_iam_policy.external_dns
module.eks.aws_iam_policy.vault_dynamodb
module.eks.aws_iam_policy.vault_kms
module.eks.aws_iam_policy.vault_server
module.kms.aws_kms_alias.vault_unseal
module.kms.aws_kms_key.vault_unseal
module.eks.module.argo_workflows.data.aws_caller_identity.current
module.eks.module.argo_workflows.data.aws_iam_policy_document.this[0]
module.eks.module.argo_workflows.data.aws_partition.current
module.eks.module.argo_workflows.data.aws_region.current
module.eks.module.argo_workflows.aws_iam_role.this[0]
module.eks.module.argo_workflows.aws_iam_role_policy_attachment.this["admin"]
module.eks.module.argocd.data.aws_caller_identity.current
module.eks.module.argocd.data.aws_iam_policy_document.this[0]
module.eks.module.argocd.data.aws_partition.current
module.eks.module.argocd.data.aws_region.current
module.eks.module.argocd.aws_iam_role.this[0]
module.eks.module.argocd.aws_iam_role_policy_attachment.this["argocd"]
module.eks.module.atlantis.data.aws_caller_identity.current
module.eks.module.atlantis.data.aws_iam_policy_document.this[0]
module.eks.module.atlantis.data.aws_partition.current
module.eks.module.atlantis.data.aws_region.current
module.eks.module.atlantis.aws_iam_role.this[0]
module.eks.module.atlantis.aws_iam_role_policy_attachment.this["atlantis"]
module.eks.module.aws_ebs_csi_driver.data.aws_caller_identity.current
module.eks.module.aws_ebs_csi_driver.data.aws_iam_policy_document.this[0]
module.eks.module.aws_ebs_csi_driver.data.aws_partition.current
module.eks.module.aws_ebs_csi_driver.data.aws_region.current
module.eks.module.aws_ebs_csi_driver.aws_iam_role.this[0]
module.eks.module.aws_ebs_csi_driver.aws_iam_role_policy_attachment.this["admin"]
module.eks.module.cert_manager.data.aws_caller_identity.current
module.eks.module.cert_manager.data.aws_iam_policy_document.this[0]
module.eks.module.cert_manager.data.aws_partition.current
module.eks.module.cert_manager.data.aws_region.current
module.eks.module.cert_manager.aws_iam_role.this[0]
module.eks.module.cert_manager.aws_iam_role_policy_attachment.this["cert_manager"]
module.eks.module.chartmuseum.data.aws_caller_identity.current
module.eks.module.chartmuseum.data.aws_iam_policy_document.this[0]
module.eks.module.chartmuseum.data.aws_partition.current
module.eks.module.chartmuseum.data.aws_region.current
module.eks.module.chartmuseum.aws_iam_role.this[0]
module.eks.module.chartmuseum.aws_iam_role_policy_attachment.this["chartmuseum"]
module.eks.module.cluster_autoscaler_irsa.data.aws_caller_identity.current
module.eks.module.cluster_autoscaler_irsa.data.aws_iam_policy_document.this[0]
module.eks.module.cluster_autoscaler_irsa.data.aws_partition.current
module.eks.module.cluster_autoscaler_irsa.data.aws_region.current
module.eks.module.cluster_autoscaler_irsa.aws_iam_role.this[0]
module.eks.module.cluster_autoscaler_irsa.aws_iam_role_policy_attachment.this["cluster_autoscalert"]
module.eks.module.crossplane_custom_trust.data.aws_caller_identity.current
module.eks.module.crossplane_custom_trust.data.aws_iam_policy_document.assume_role[0]
module.eks.module.crossplane_custom_trust.data.aws_partition.current
module.eks.module.crossplane_custom_trust.aws_iam_role.this[0]
module.eks.module.crossplane_custom_trust.aws_iam_role_policy_attachment.custom[0]
module.eks.module.ecr_publish_permissions_sync.data.aws_caller_identity.current
module.eks.module.ecr_publish_permissions_sync.data.aws_iam_policy_document.this[0]
module.eks.module.ecr_publish_permissions_sync.data.aws_partition.current
module.eks.module.ecr_publish_permissions_sync.data.aws_region.current
module.eks.module.ecr_publish_permissions_sync.aws_iam_role.this[0]
module.eks.module.ecr_publish_permissions_sync.aws_iam_role_policy_attachment.this["admin"]
module.eks.module.eks.data.aws_caller_identity.current
module.eks.module.eks.data.aws_eks_addon_version.this["aws-ebs-csi-driver"]
module.eks.module.eks.data.aws_eks_addon_version.this["kube-proxy"]
module.eks.module.eks.data.aws_eks_addon_version.this["vpc-cni"]
module.eks.module.eks.data.aws_iam_policy_document.assume_role_policy[0]
module.eks.module.eks.data.aws_iam_session_context.current
module.eks.module.eks.data.aws_partition.current
module.eks.module.eks.data.tls_certificate.this[0]
module.eks.module.eks.aws_cloudwatch_log_group.this[0]
module.eks.module.eks.aws_ec2_tag.cluster_primary_security_group["kubefirst"]
module.eks.module.eks.aws_eks_access_entry.this["argocd_mgmt-275"]
module.eks.module.eks.aws_eks_access_entry.this["atlantis_mgmt-275"]
module.eks.module.eks.aws_eks_access_entry.this["kubernetesadmin"]
module.eks.module.eks.aws_eks_access_policy_association.this["argocd_mgmt-275_view_deployments"]
module.eks.module.eks.aws_eks_access_policy_association.this["atlantis_mgmt-275_view_deployments"]
module.eks.module.eks.aws_eks_access_policy_association.this["kubernetesadmin_view_deployments"]
module.eks.module.eks.aws_eks_addon.before_compute["vpc-cni"]
module.eks.module.eks.aws_eks_addon.this["aws-ebs-csi-driver"]
module.eks.module.eks.aws_eks_addon.this["kube-proxy"]
module.eks.module.eks.aws_eks_cluster.this[0]
module.eks.module.eks.aws_iam_openid_connect_provider.oidc_provider[0]
module.eks.module.eks.aws_iam_policy.cluster_encryption[0]
module.eks.module.eks.aws_iam_role.this[0]
module.eks.module.eks.aws_iam_role_policy_attachment.cluster_encryption[0]
module.eks.module.eks.aws_iam_role_policy_attachment.this["AmazonEKSClusterPolicy"]
module.eks.module.eks.aws_iam_role_policy_attachment.this["AmazonEKSVPCResourceController"]
module.eks.module.eks.aws_security_group.cluster[0]
module.eks.module.eks.aws_security_group.node[0]
module.eks.module.eks.aws_security_group_rule.cluster["ingress_nodes_443"]
module.eks.module.eks.aws_security_group_rule.node["egress_all"]
module.eks.module.eks.aws_security_group_rule.node["ingress_cluster_443"]
module.eks.module.eks.aws_security_group_rule.node["ingress_cluster_4443_webhook"]
module.eks.module.eks.aws_security_group_rule.node["ingress_cluster_6443_webhook"]
module.eks.module.eks.aws_security_group_rule.node["ingress_cluster_8443_webhook"]
module.eks.module.eks.aws_security_group_rule.node["ingress_cluster_9443_webhook"]
module.eks.module.eks.aws_security_group_rule.node["ingress_cluster_kubelet"]
module.eks.module.eks.aws_security_group_rule.node["ingress_nodes_ephemeral"]
module.eks.module.eks.aws_security_group_rule.node["ingress_self_coredns_tcp"]
module.eks.module.eks.aws_security_group_rule.node["ingress_self_coredns_udp"]
module.eks.module.eks.time_sleep.this[0]
module.eks.module.external_dns.data.aws_caller_identity.current
module.eks.module.external_dns.data.aws_iam_policy_document.this[0]
module.eks.module.external_dns.data.aws_partition.current
module.eks.module.external_dns.data.aws_region.current
module.eks.module.external_dns.aws_iam_role.this[0]
module.eks.module.external_dns.aws_iam_role_policy_attachment.this["external_dns"]
module.eks.module.kubefirst_api.data.aws_caller_identity.current
module.eks.module.kubefirst_api.data.aws_iam_policy_document.this[0]
module.eks.module.kubefirst_api.data.aws_partition.current
module.eks.module.kubefirst_api.data.aws_region.current
module.eks.module.kubefirst_api.aws_iam_role.this[0]
module.eks.module.kubefirst_api.aws_iam_role_policy_attachment.this["kubefirst"]
module.eks.module.vault.data.aws_caller_identity.current
module.eks.module.vault.data.aws_iam_policy_document.this[0]
module.eks.module.vault.data.aws_partition.current
module.eks.module.vault.data.aws_region.current
module.eks.module.vault.aws_iam_role.this[0]
module.eks.module.vault.aws_iam_role_policy_attachment.this["dynamo"]
module.eks.module.vault.aws_iam_role_policy_attachment.this["kms"]
module.eks.module.vault.aws_iam_role_policy_attachment.this["vault"]
module.eks.module.vpc.aws_default_network_acl.this[0]
module.eks.module.vpc.aws_default_route_table.default[0]
module.eks.module.vpc.aws_default_security_group.this[0]
module.eks.module.vpc.aws_eip.nat[0]
module.eks.module.vpc.aws_internet_gateway.this[0]
module.eks.module.vpc.aws_nat_gateway.this[0]
module.eks.module.vpc.aws_route.private_nat_gateway[0]
module.eks.module.vpc.aws_route.public_internet_gateway[0]
module.eks.module.vpc.aws_route_table.intra[0]
module.eks.module.vpc.aws_route_table.private[0]
module.eks.module.vpc.aws_route_table.public[0]
module.eks.module.vpc.aws_route_table_association.intra[0]
module.eks.module.vpc.aws_route_table_association.intra[1]
module.eks.module.vpc.aws_route_table_association.intra[2]
module.eks.module.vpc.aws_route_table_association.private[0]
module.eks.module.vpc.aws_route_table_association.private[1]
module.eks.module.vpc.aws_route_table_association.private[2]
module.eks.module.vpc.aws_route_table_association.public[0]
module.eks.module.vpc.aws_route_table_association.public[1]
module.eks.module.vpc.aws_route_table_association.public[2]
module.eks.module.vpc.aws_subnet.intra[0]
module.eks.module.vpc.aws_subnet.intra[1]
module.eks.module.vpc.aws_subnet.intra[2]
module.eks.module.vpc.aws_subnet.private[0]
module.eks.module.vpc.aws_subnet.private[1]
module.eks.module.vpc.aws_subnet.private[2]
module.eks.module.vpc.aws_subnet.public[0]
module.eks.module.vpc.aws_subnet.public[1]
module.eks.module.vpc.aws_subnet.public[2]
module.eks.module.vpc.aws_vpc.this[0]
module.eks.module.vpc_cni_irsa.data.aws_caller_identity.current
module.eks.module.vpc_cni_irsa.data.aws_iam_policy_document.this[0]
module.eks.module.vpc_cni_irsa.data.aws_iam_policy_document.vpc_cni[0]
module.eks.module.vpc_cni_irsa.data.aws_partition.current
module.eks.module.vpc_cni_irsa.data.aws_region.current
module.eks.module.vpc_cni_irsa.aws_iam_policy.vpc_cni[0]
module.eks.module.vpc_cni_irsa.aws_iam_role.this[0]
module.eks.module.vpc_cni_irsa.aws_iam_role_policy_attachment.this["AmazonEKS_CNI_Policy"]
module.eks.module.vpc_cni_irsa.aws_iam_role_policy_attachment.vpc_cni[0]
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].data.aws_caller_identity.current
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].data.aws_iam_policy_document.assume_role_policy[0]
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].data.aws_partition.current
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].aws_eks_node_group.this[0]
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].aws_iam_role.this[0]
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].aws_iam_role_policy_attachment.this["AmazonEC2ContainerRegistryReadOnly"]
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].aws_iam_role_policy_attachment.this["AmazonEKSWorkerNodePolicy"]
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].aws_iam_role_policy_attachment.this["AmazonEKS_CNI_Policy"]
module.eks.module.eks.module.kms.data.aws_caller_identity.current[0]
module.eks.module.eks.module.kms.data.aws_iam_policy_document.this[0]
module.eks.module.eks.module.kms.data.aws_partition.current[0]
module.eks.module.eks.module.kms.aws_kms_alias.this["cluster"]
module.eks.module.eks.module.kms.aws_kms_key.this[0]
module.eks.module.eks.module.eks_managed_node_group["default_node_group"].module.user_data.null_resource.validate_cluster_service_cidr
